| Image | Mfr Part # | Series | Package | Product Status | Function | Type | Output Type | Number of Elements | Number of Bits per Element | Max Propagation Delay @ V, Max CL | Trigger Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN5472J
AND-GATED J-K MASTER-SLAVE FLIP-
|
- | Tube | Active | - | JK Type | Complementary | 1 | 1 | 40ns @ 5V, 15pF | Positive Edge |
|
|
SN74ALS273NS
IC FF D-TYPE SNGL 8BIT 20SO
|
74ALS | Tube | Active | - | D-Type | Non-Inverted | 1 | 8 | 15ns @ 5V, 50pF | Positive Edge |
|
SN74AS109ADRE4
IC FF JK TYPE DUAL 1BIT 16SOIC
|
74AS | Tape & Reel (TR) | Obsolete | - | JK Type | Complementary | 2 | 1 | 9ns @ 5V, 50pF | Positive Edge |
|
SN74AS576DWG4
IC FF D-TYPE SNGL 8BIT 20SOIC
|
74AS | Tube | Obsolete | - | D-Type | Tri-State, Inverted | 1 | 8 | 9ns @ 5V, 50pF | Positive Edge |
|
SN74LS112AD
IC FF JK TYPE DUAL 1BIT 16SOIC
|
74LS | Tube | Active | - | JK Type | Complementary | 2 | 1 | 20ns @ 5V, 15pF | Negative Edge |
|
SN74AS821ADWR
IC FF D-TYPE SNGL 10BIT 20SOIC
|
74AS | Tape & Reel (TR) | Obsolete | - | D-Type | Tri-State, Non-Inverted | 1 | 10 | 13ns @ 5V, 50pF | Positive Edge |
|
SN74LS112ADRE4
IC FF JK TYPE DUAL 1BIT 16SOIC
|
74LS | Tape & Reel (TR) | Discontinued at | - | JK Type | Complementary | 2 | 1 | 20ns @ 5V, 15pF | Negative Edge |
|
|
SN74LS273NE4
IC FF D-TYPE SNGL 8BIT 20DIP
|
74LS | Tube | Active | - | D-Type | Non-Inverted | 1 | 8 | 27ns @ 5V, 15pF | Positive Edge |
|
SN74AS576DWE4
IC FF D-TYPE SNGL 8BIT 20SOIC
|
74AS | Tube | Obsolete | - | D-Type | Tri-State, Inverted | 1 | 8 | 9ns @ 5V, 50pF | Positive Edge |
|

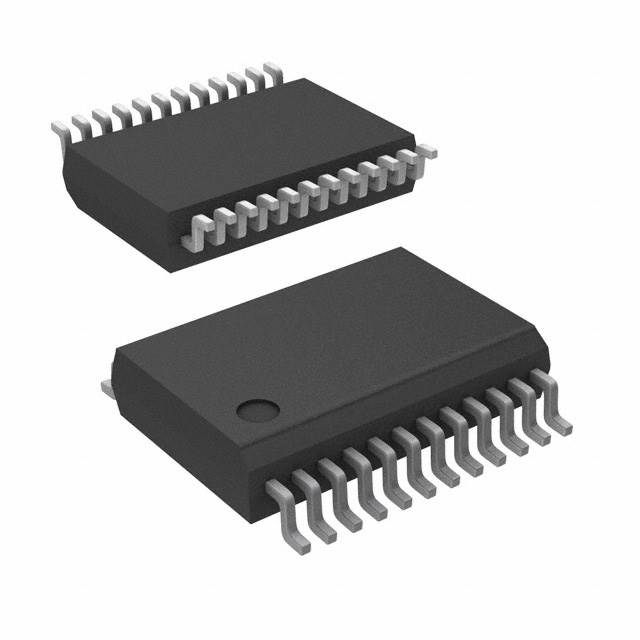

SN74ABT821ADBR
IC FF D-TYPE SNGL 10BIT 24SSOP
|
74ABT | Tape & Reel (TR) | Obsolete | - | D-Type | Tri-State, Non-Inverted | 1 | 10 | 6.2ns @ 5V, 50pF | Positive Edge |
|
74LS377SC
D FLIP-FLOP
|
74LS | Bulk | Active | - | D-Type | Non-Inverted | 1 | 8 | 25ns @ 5V, 15pF | Positive Edge |
|
SN74ABT374ADW
IC FF D-TYPE SNGL 8BIT 20SOIC
|
74ABT | Tube | Active | - | D-Type | Tri-State, Non-Inverted | 1 | 8 | 5.1ns @ 5V, 50pF | Positive Edge |
