| Image | Mfr Part # | Series | Package | Product Status | Type | Interface | Clock Rate | Non-Volatile Memory | On-Chip RAM | Voltage - I/O | Voltage - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMS320DM6435ZWT5CX
IC DGTL MEDIA PROCESSOR 361-BGA
|
TMS320DM643x, DaVinci™ | Tray | Active | Fixed Point | HPI, I²C, McASP, McBSP, UART, 10/100 Ethernet MAC | 500MHz | ROM (64kB) | 240kB | 1.8V, 3.3V | 1.05V, 1.20V |
|
66AK2H12BAAW2
IC DSP ARM SOC 1517FCBGA
|
66AK2Hx KeyStone Multicore | Tray | Obsolete | DSP+ARM® | EBI/EMI, Ethernet, DMA, I²C, Serial RapidIO, SPI, UART/USART, USB 3.0 | 1.2GHz | ROM (384kB) | 12.75MB | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V | Variable |
|
|
66AK2H06AAAW2
IC DSP ARM SOC 1517BGA
|
66AK2Hx KeyStone Multicore | Tray | Obsolete | DSP+ARM® | EBI/EMI, Ethernet, DMA, I²C, Serial RapidIO, SPI, UART/USART, USB 3.0 | 1.2GHz | ROM (384kB) | 8.375MB | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V | Variable |
|
TNETV2685FIBZUTA5
DIGITAL MEDIA PROCESSOR
|
TMS320DM64x, DaVinci™ | Tray | Obsolete | Fixed Point | Host Interface, I²C, McASP, PCI, SPI, UART | 720MHz | ROM (64kB) | 576kB | 1.8V, 3.3V | 1.20V |
|
|
66AK2H06DAAW2
66AK2H06DAAW2
|
66AK2Hx KeyStone Multicore | Tray | Active | DSP+ARM® | EBI/EMI, Ethernet, DMA, I²C, Serial RapidIO, SPI, UART/USART, USB 3.0 | 1.2GHz | ROM (384kB) | 8.375MB | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V | Variable |
|
|
66AK2H12BXAAW2
IC DSP ARM SOC 1517FCBGA
|
66AK2Hx KeyStone Multicore | Tray | Discontinued at | DSP+ARM® | EBI/EMI, Ethernet, DMA, I²C, Serial RapidIO, SPI, UART/USART, USB 3.0 | 1.2GHz | ROM (384kB) | 12.75MB | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V | Variable |
|
|
66AK2H06BAAWA24
IC DSP ARM SOC 1517FCBGA
|
66AK2Hx KeyStone Multicore | Tray | Discontinued at | DSP+ARM® | EBI/EMI, Ethernet, DMA, I²C, Serial RapidIO, SPI, UART/USART, USB 3.0 | 1.2GHz DSP, 1.4GHz ARM® | ROM (384kB) | 8.375MB | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V | Variable |
|

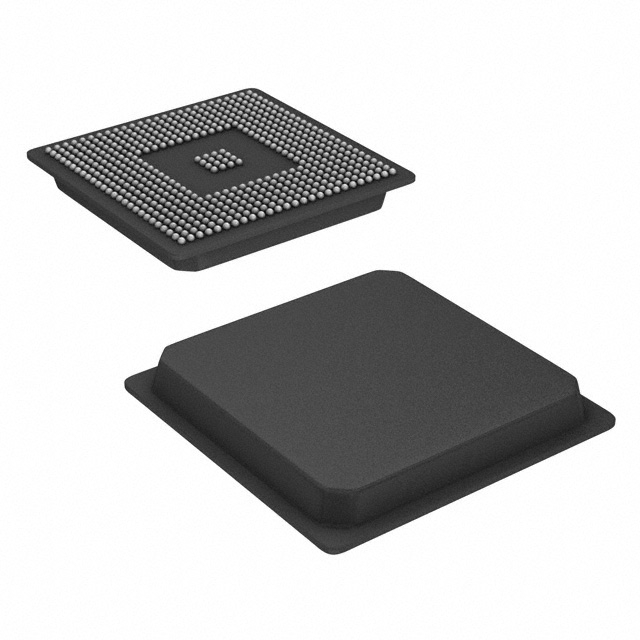

TMS320DM642GNZ600
IC DGTL MEDIA PROCESSOR 548-BGA
|
TMS320DM64x, DaVinci™ | Tube | Obsolete | Fixed Point | Host Interface, I²C, McASP, McBSP, PCI | 600MHz | External | 160kB | 3.30V | 1.40V |
|
TMS320C6670AXCYP
IC DSP FIX/FLOAT POINT 841FCBGA
|
TMS320C66x | Tube | Active | Fixed/Floating Point | EBI/EMI, Ethernet MAC, PCIe, I²C, SPI, SRIO, UART | 1GHz | ROM (128kB) | 6.25MB | 1.0V, 1.5V, 1.8V | 1.00V |
|

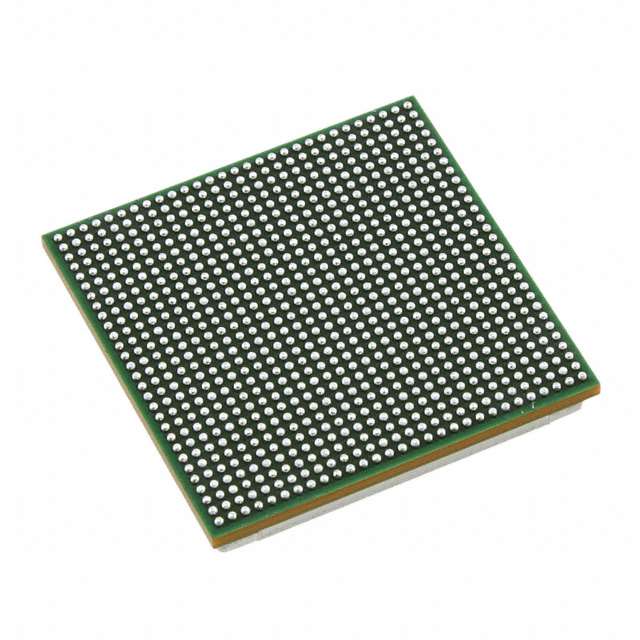

TMS320C6672ACYP
IC DSP FIX/FLOAT POINT 841FCBGA
|
TMS320C66x | Tray | Active | Fixed/Floating Point | EBI/EMI, Ethernet MAC, PCIe, I²C, SPI, SRIO, UART | 1GHz | ROM (128kB) | 5.125MB | 1.0V, 1.5V, 1.8V | 1.00V |
|
TMS320DM648CUTD7
IC DGTL MEDIA PROCESSOR 529FCBGA
|
TMS320DM64x, DaVinci™ | Tray | Not For New Designs | Fixed Point | Host Interface, I²C, McASP, PCI, SPI, UART | 720MHz | ROM (64kB) | 576kB | 1.8V, 3.3V | 1.20V |
|

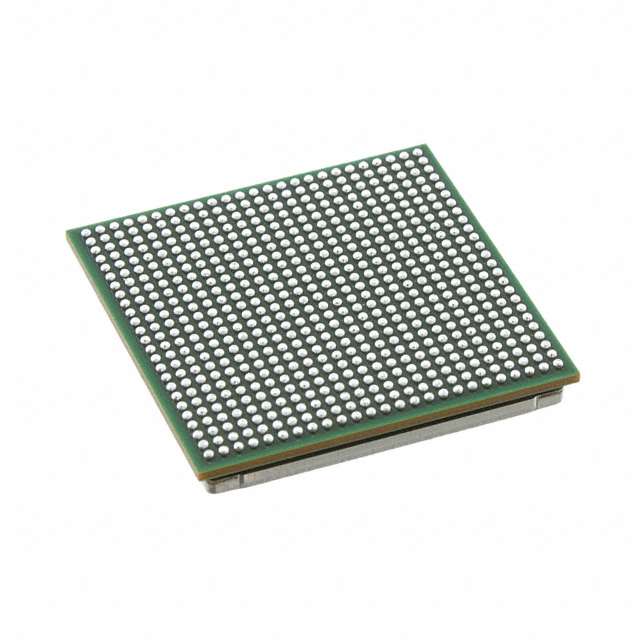

TMX320C6655CZH
IC DSP FIX/FLOAT POINT 625FCBGA
|
TMS320C66x | Tube | Obsolete | Fixed/Floating Point | DDR3, EBI/EMI, Ethernet MAC, McBSP, PCIe, I²C, SPI, SRIO, UART, UPP | 1GHz | ROM (128kB) | 2.125MB | 1.0V, 1.5V, 1.8V | Variable |
