| Image | Mfr Part # | Series | Package | Product Status | Type | Interface | Clock Rate | Non-Volatile Memory | On-Chip RAM | Voltage - I/O | Voltage - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMS320C5504AZCH12
IC DSP FIXED-POINT 196NFBGA
|
TMS320C55x | Bulk | Active | Fixed Point | EBI/EMI, I²C, I²S, MMC/SD, SPI, UART/USART, USB | 120MHz | ROM (128kB) | 256kB | 1.8V, 2.5V, 2.8V, 3.3V | 1.05V, 1.30V |
|
X66AK2H06AAAWA2
IC DSP ARM SOC BGA
|
66AK2Hx KeyStone Multicore | Tray | Discontinued at | DSP+ARM® | EBI/EMI, Ethernet, DMA, I²C, Serial RapidIO, SPI, UART/USART, USB 3.0 | 1.2GHz | ROM (384kB) | 8.375MB | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V | Variable |
|
66AK2H14DSAAWA24
PROTOTYPE
|
66AK2Hx KeyStone Multicore | Bulk | Active | DSP+ARM® | EBI/EMI, Ethernet, DMA, I²C, Serial RapidIO, SPI, UART/USART, USB 3.0 | 1.2GHz DSP, 1.4GHz ARM® | ROM (384kB) | 12.75MB | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V | Variable |
|
TMS320C6654CZH7
TMS320C6654CZH7
|
TMS320C66x | Tube | Active | Fixed/Floating Point | DDR3, EBI/EMI, Ethernet, McBSP, PCIe, I²C, SPI, UART, UPP | 750MHz | ROM (128kB) | 1.06MB | 1.0V, 1.5V, 1.8V | 1.00V |
|
|
5962-9760601NXB
PROTOTYPE
|
TMS320C3x | Tray | Active | Floating Point | - | 40MHz | External | 8kB | 3.30V | 3.30V |
|
TMS320C5514AZCH12
IC DSP FIXED-POINT 196NFBGA
|
TMS320C55x | Tray | Active | Fixed Point | EBI/EMI, I²C, I²S, MMC/SD, SPI, UART/USART, USB | 120MHz | ROM (128kB) | 256kB | 1.8V, 2.5V, 2.8V, 3.3V | 1.30V |
|
|
66AK2H06DAAW24
66AK2H06DAAW24
|
66AK2Hx KeyStone Multicore | Tray | Active | DSP+ARM® | EBI/EMI, Ethernet, DMA, I²C, Serial RapidIO, SPI, UART/USART, USB 3.0 | 1.2GHz DSP, 1.4GHz ARM® | ROM (384kB) | 8.375MB | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V | Variable |
|

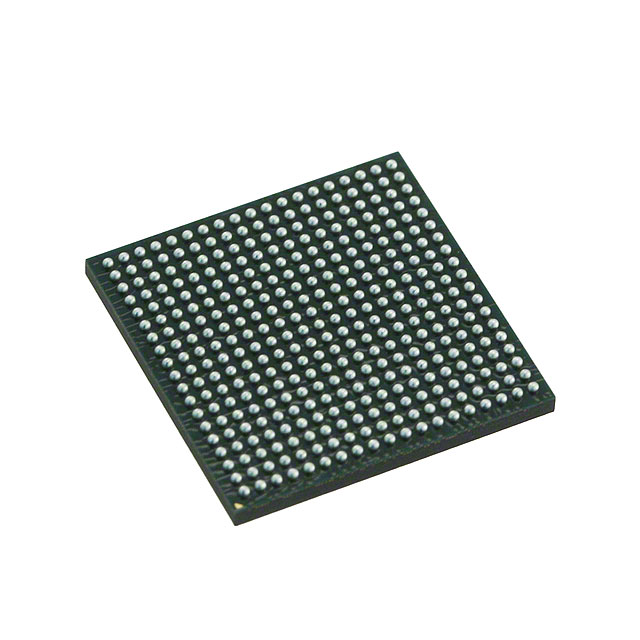

TMS320C6748BZCEA3E
IC DSP FIX/FLOAT POINT 361NFBGA
|
TMS320C674x | Tray | Obsolete | Fixed/Floating Point | EBI/EMI, Ethernet MAC, Host Interface, I²C, McASP, SPI, UART, USB | 375MHz | External | 448kB | 1.8V, 3.3V | 1.20V |
|

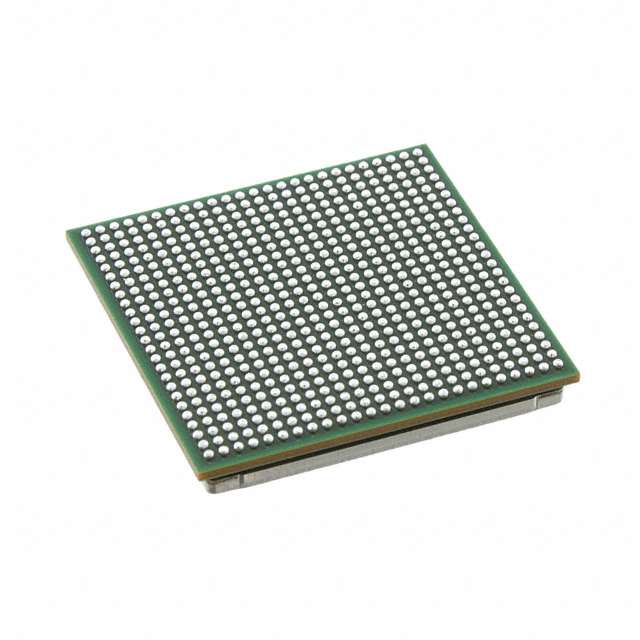

TMS320C6655CZH25
IC DSP FIX/FLOAT POINT 625FCBGA
|
TMS320C66x | Tray | Active | Fixed/Floating Point | DDR3, EBI/EMI, Ethernet, McBSP, PCIe, I²C, SPI, UART, UPP | 1.25GHz | ROM (128kB) | 2.06MB | 1.0V, 1.5V, 1.8V | 1.00V |
|

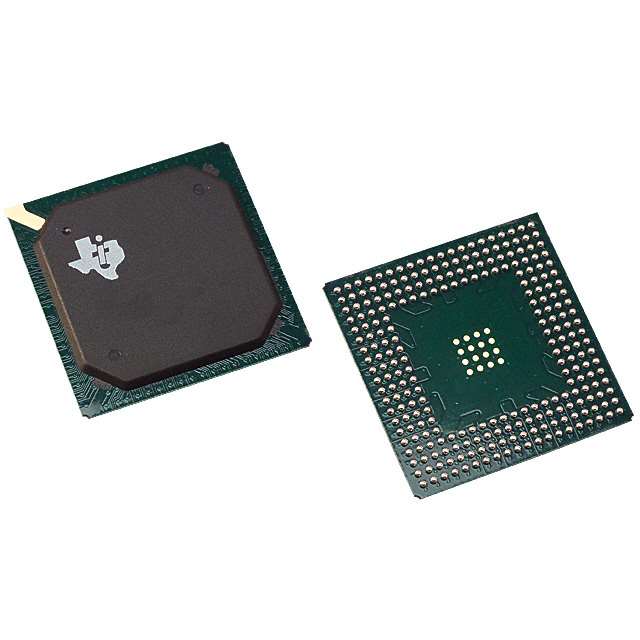

TMS320C6747CZKBD4
IC DSP FIXED/FLOAT POINT 256BGA
|
TMS320C674x | Tube | Obsolete | Fixed/Floating Point | EBI/EMI, Ethernet MAC, Host Interface, I²C, McASP, SPI, UART, USB | 456MHz | External | 448kB | 3.30V | 1.20V |
|

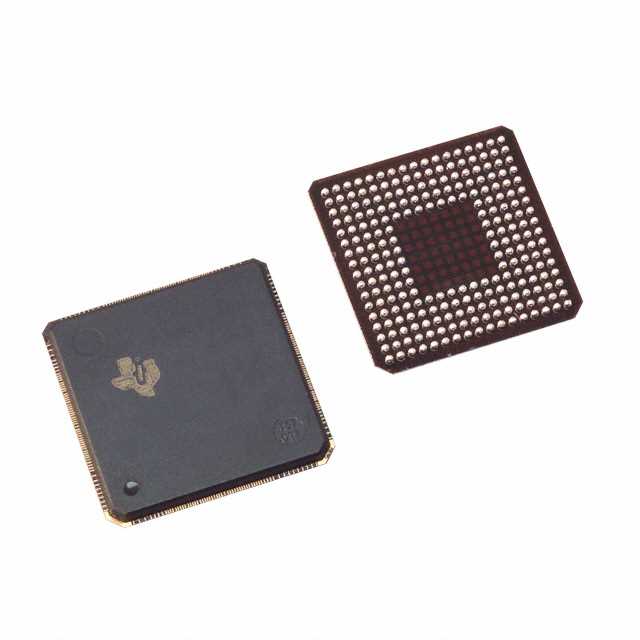

TMS320VC5510AGGWA1
IC FIXED POINT DSP 240-BGA
|
TMS320C55x | Bulk | Obsolete | Fixed Point | Host Interface, McBSP | 160MHz | ROM (32kB) | 344kB | 3.30V | 1.60V |
|

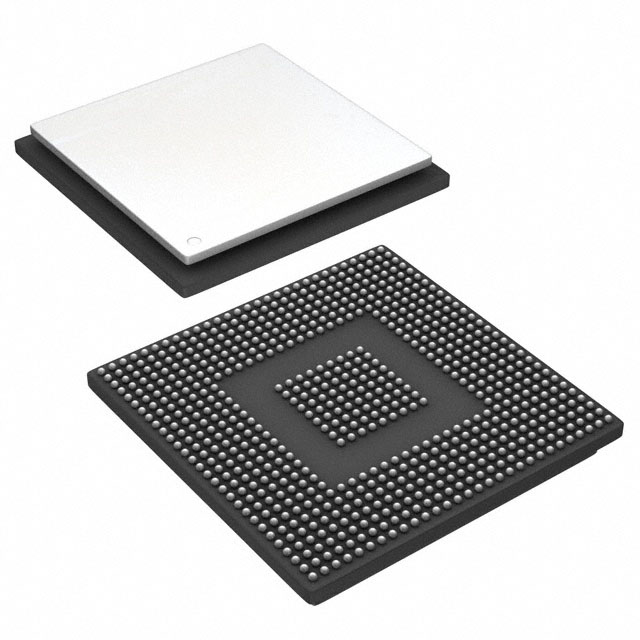

TMS320C6455BCTZ8
IC DSP FIXED-POINT 697FCBGA
|
TMS320C645x | Bulk | Active | Fixed Point | Host Interface, I²C, McBSP, PCI, UTOPIA | 850MHz | ROM (32kB) | 2.1MB | 1.8V, 3.3V | 1.20V |
