| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1100Z-30
IC DELAY LINE 5TAP 30NS 8SOIC
|
- | Tube | Obsolete | Nonprogrammable | 6ns | 30ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1135U-6/T&R
IC DELAY LINE 6NS 8UMAX
|
- | Tape & Reel (TR) | Obsolete | Multiple, NonProgrammable | 6ns | 6ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1100M-200
IC DELAY LINE 5TAP 200NS 8DIP
|
- | Tube | Obsolete | Nonprogrammable | 40ns | 200ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1100M-125
IC DELAY LINE 5TAP 125NS 8DIP
|
- | Tube | Obsolete | Nonprogrammable | 25ns | 125ns | 1 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1033Z-10/T&R
IC DELAY LINE 10NS 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Multiple, NonProgrammable | 10ns | 10ns | 3 | 2.7V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1100LZ-25/T&R
IC DELAY LINE 5TAP 25NS 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Nonprogrammable | 5ns | 25ns | 1 | 3V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1020S-25+
IC DEL LN 256TAP 73.75NS 16SOIC
|
- | Tube | Obsolete | Programmable | 10ns | 73.75ns | 1 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|

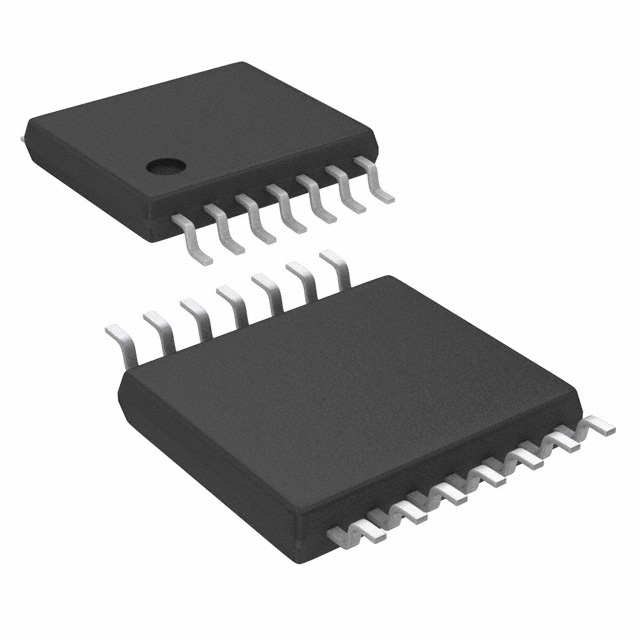

DS1110LE-80+
IC DELAY LINE 10TAP 14-TSSOP
|
- | Tube | Obsolete | Nonprogrammable | 8ns | 80ns | 1 | 2.7V ~ 3.6V | Surface Mount | 14-TSSOP (0.173", 4.40mm Width) |
|
DS1135Z-6
IC DELAY LINE 6NS 8SOIC
|
- | Tube | Discontinued at | Multiple, NonProgrammable | 6ns | 6ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1013M-12
DELAY LINE 3TAP 12NS MAX 8-DIP
|
* | Tube | Obsolete | Multiple | 12ns | 12, 12, 12ns | 3 | 5V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1013S-35
DELAY LINE 3TAP 35NS 16-SOIC
|
* | Tube | Obsolete | Multiple | 35ns | 35, 35, 35ns | 3 | 5V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1010-75
IC DELAY LINE 10TAP 75NS 14DIP
|
- | Tube | Obsolete | Nonprogrammable | 7.5ns | 75ns | 1 | 4.75V ~ 5.25V | Through Hole | 14-DIP (0.300", 7.62mm) |
