| Image | Mfr Part # | Series | Package | Product Status | Function | Delay to 1st Tap | Available Total Delays | Number of Independent Delays | Voltage - Supply | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1100Z-45/T&R
IC DELAY LINE 5TAP 45NS 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Nonprogrammable | 9ns | 45ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1100LU-30+T
IC DELAY LINE 5TAP 30NS 8UMAX
|
- | Tape & Reel (TR) | Active | Nonprogrammable | 6ns | 30ns | 1 | 3V ~ 3.6V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
|
DS1013S-40
IC DELAY LINE 40NS 16SOIC
|
- | Tube | Obsolete | Multiple, NonProgrammable | 40ns | 40ns | 3 | 4.75V ~ 5.25V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) |
|
DS1013M-40+
IC DELAY LINE 40NS 8DIP
|
- | Tube | Obsolete | Multiple, NonProgrammable | 40ns | 40ns | 3 | 4.75V ~ 5.25V | Through Hole | 8-DIP (0.300", 7.62mm) |
|
DS1100LZ-50
IC DELAY LINE 5TAP 50NS 8SOIC
|
- | Tube | Obsolete | Nonprogrammable | 10ns | 50ns | 1 | 3V ~ 3.6V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1020-25
IC DELAY LN 256TAP 73.75NS 16DIP
|
- | Tube | Obsolete | Programmable | 10ns | 73.75ns | 1 | 4.75V ~ 5.25V | Through Hole | 16-DIP (0.300", 7.62mm) |
|
DS1004Z-5+T
IC DELAY LINE 5TAP 25NS 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Nonprogrammable | 5ns | 25ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1004Z-5
IC DELAY LINE 5TAP 25NS 8SOIC
|
- | Tube | Obsolete | Nonprogrammable | 5ns | 25ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1135Z-15+
IC DELAY LINE 15NS 8SOIC
|
- | Tube | Active | Multiple, NonProgrammable | 15ns | 15ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|

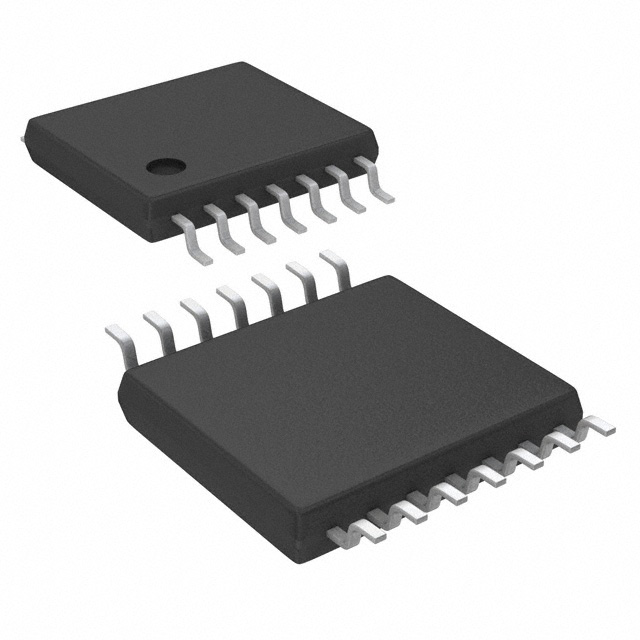

DS1110LE-300+
IC DELAY LN 10TAP 300NS 14TSSOP
|
- | Tube | Obsolete | Nonprogrammable | 30ns | 300ns | 1 | 2.7V ~ 3.6V | Surface Mount | 14-TSSOP (0.173", 4.40mm Width) |
|
DS1035Z-6
IC DELAY LINE 6NS 8-SOIC
|
- | - | Obsolete | Multiple, NonProgrammable | 6ns | 6ns | 3 | 4.75V ~ 5.25V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) |
|
DS1100U-300/T&R
IC DELAY LINE 5TAP 300NS 8UMAX
|
- | Tape & Reel (TR) | Obsolete | Nonprogrammable | 60ns | 300ns | 1 | 4.75V ~ 5.25V | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
