| Image | Mfr Part # | Series | Package | Product Status | Type | Number of Circuits | Ratio - Input/Output | Differential - Input/Output | Input | Output | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
580G-01LF
IC CLK MULTPX 2:2 270MHZ 16TSSOP
|
- | Tube | Obsolete | Multiplexer | 1 | 2:2 | No/No | Clock | Clock | 2.5V ~ 5.5V |
|

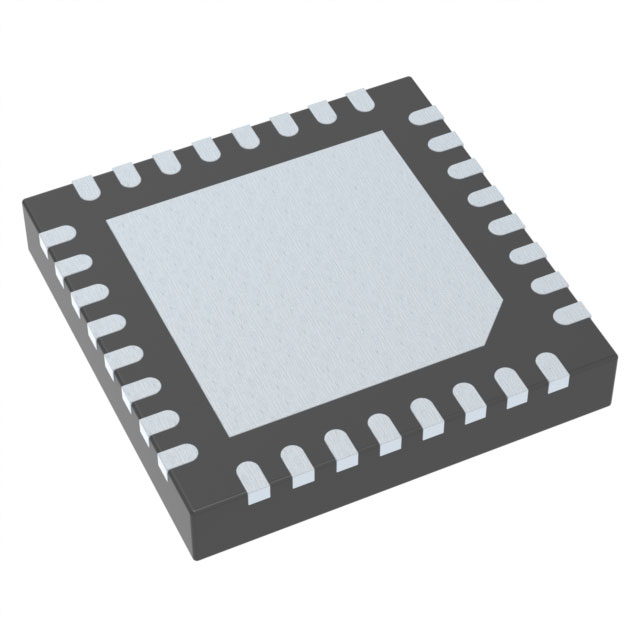

8S58035AKILF
IC CLK BUF 2:6 3.2GHZ 32VFQFPN
|
- | Tray | Active | Fanout Buffer (Distribution), Multiplexer | 1 | 2:6 | Yes/Yes | CML, LVDS, LVPECL, SSTL | ECL, LVPECL | 2.375V ~ 3.6V |
|
IDT49FCT805PY
IC CLK BUFFER 1:5 20SSOP
|
49FCT | Tube | Obsolete | Fanout Buffer (Distribution) | 2 | 1:5 | No/No | CMOS, LVTTL | CMOS, LVTTL | 4.75V ~ 5.25V |
|
MC100ES6011EF
IC CLK BUFFER 1:2 3GHZ 8SOIC
|
100ES | Tube | Obsolete | Fanout Buffer (Distribution) | 1 | 1:2 | Yes/Yes | ECL | LVPECL | 2.375V ~ 3.8V |
|
RC16102A102GGM#BB0
RC16102A102 LVCMOS BUFFER, 1:2,
|
- | Tube | Active | - | - | - | - | - | - | - |
|
IDT49FCT806PY
IC CLK BUFFER 1:5 20SSOP
|
49FCT | Tube | Obsolete | Fanout Buffer (Distribution) | 2 | 1:5 | No/No | CMOS, LVTTL | CMOS, LVTTL | 4.75V ~ 5.25V |
|
|
8V31504GILF
NETWORK TIMING
|
* | Tube | Obsolete | - | - | - | - | - | - | - |
|

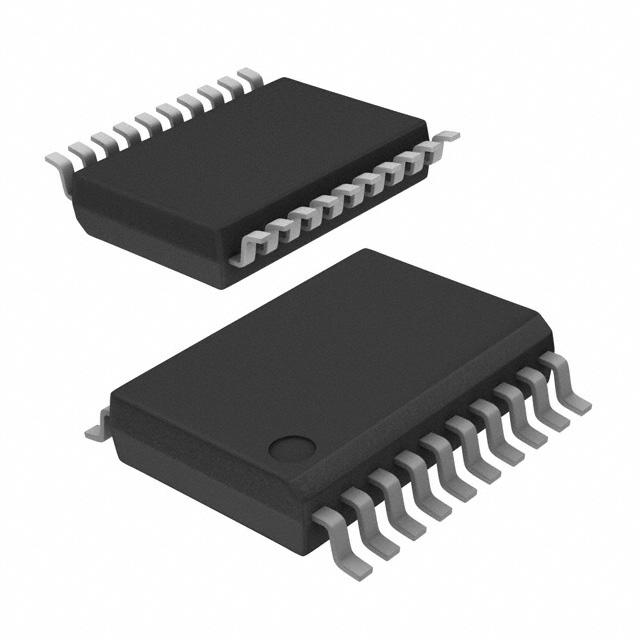

49FCT3805BPYGI8
IC CLK BUFFER 1:5 20SSOP
|
49FCT | Tape & Reel (TR) | Active | Fanout Buffer (Distribution) | 2 | 1:5 | No/No | CMOS, LVTTL | CMOS, LVTTL | 3V ~ 3.6V |
|
ICS889833AKLF
IC CLK BUFFER 1:4 2GHZ 16VFQFN
|
- | Tray | Obsolete | Fanout Buffer (Distribution) | 1 | 1:4 | Yes/Yes | CML, LVDS, LVPECL | LVDS | 3V ~ 3.6V |
|

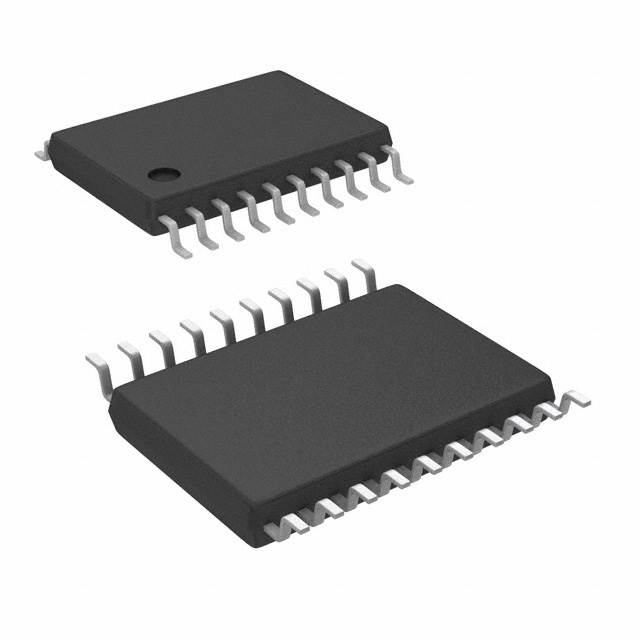

ICS853S314AGILF
IC CLK BUFFER 2:4 2.7GHZ 20TSSOP
|
- | Tube | Obsolete | Fanout Buffer (Distribution), Multiplexer | 1 | 2:4 | Yes/Yes | ECL, HSTL, LVPECL | ECL, LVPECL | 2.375V ~ 3.465V |
|
85357AG-01LF
IC CLK MULTIPLX 4:1/2:1 20TSSOP
|
- | Tube | Obsolete | Multiplexer | 1 | 4:1, 2:1 | Yes/Yes | HCSL, LVDS, LVHSTL, LVPECL, SSTL | LVPECL | 3.135V ~ 3.465V |
|

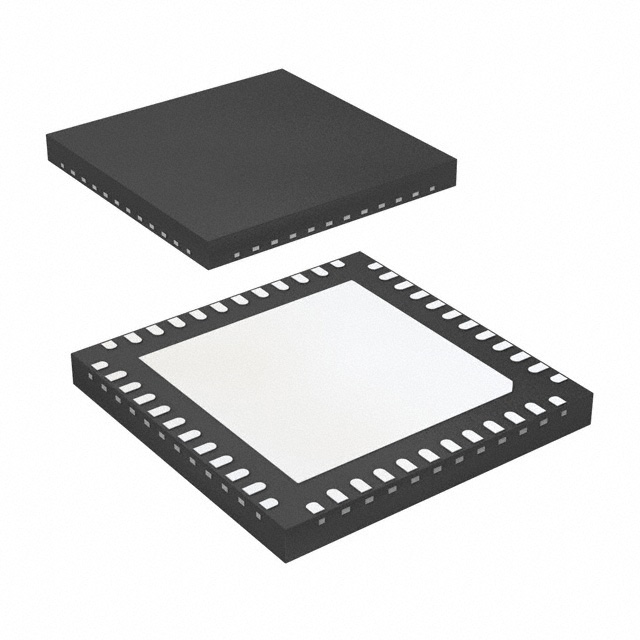

8T3910BNLGI
IC CLK BUF 3:11 500MHZ 48VFQFPN
|
- | Tray | Obsolete | Fanout Buffer (Distribution), Multiplexer | 1 | 3:11 | Yes/Yes | HCSL, LVDS, LVPECL, Crystal | HCSL, LVCMOS, LVDS, LVPECL, LVTTL | 2.375V ~ 3.465V |
