| Image | Mfr Part # | Series | Package | Product Status | Type | Number of Circuits | Ratio - Input/Output | Differential - Input/Output | Input | Output | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

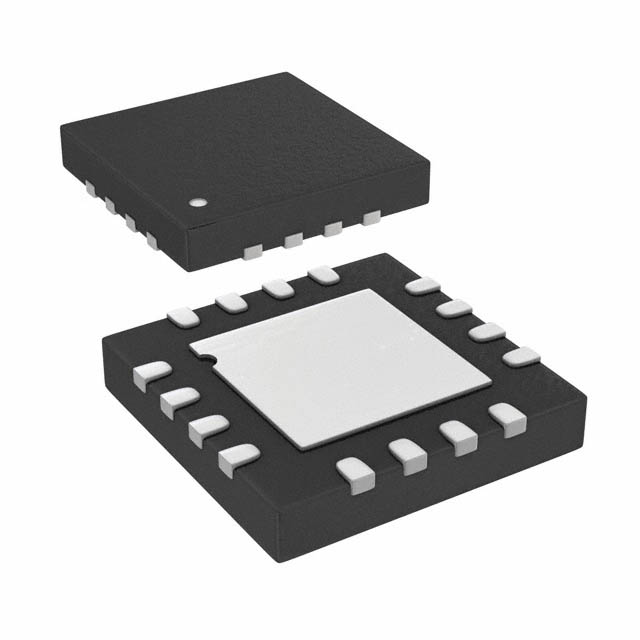

SY58012UMG
IC CLK BUFFER 1:2 5GHZ 16MLF
|
Precision Edge® | Tube | Active | Fanout Buffer (Distribution), Translator | 1 | 1:2 | Yes/Yes | CML, LVDS, LVPECL | LVPECL | 2.375V ~ 3.6V |
|

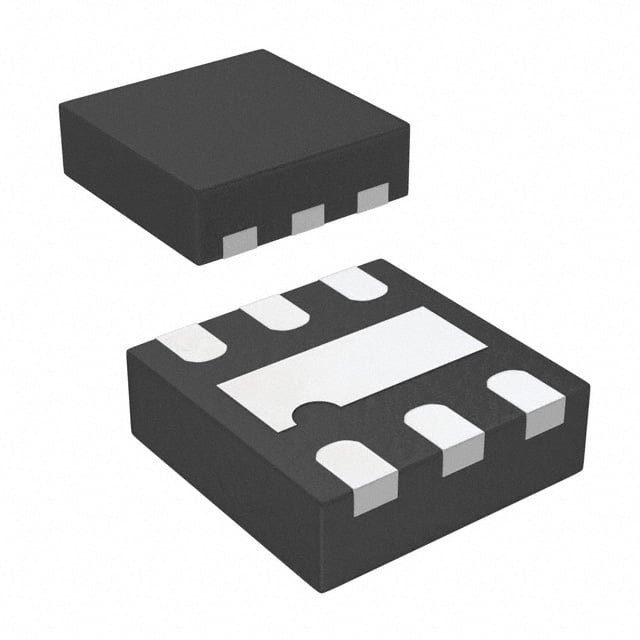

PL133-21GC-R
IC CLK BUFFER 1:2 150MHZ 6DFN
|
- | Tape & Reel (TR) | Active | Fanout Buffer (Distribution) | 1 | 1:2 | No/No | LVCMOS | LVCMOS | 1.8V, 2.5V, 3.3V |
|
PL135-37SC
IC CLK BUFFER 1:3 40MHZ 8SOP
|
- | Tube | Active | Fanout Buffer (Distribution) | 1 | 1:3 | No/No | Crystal | LVCMOS | 1.62V ~ 3.63V |
|

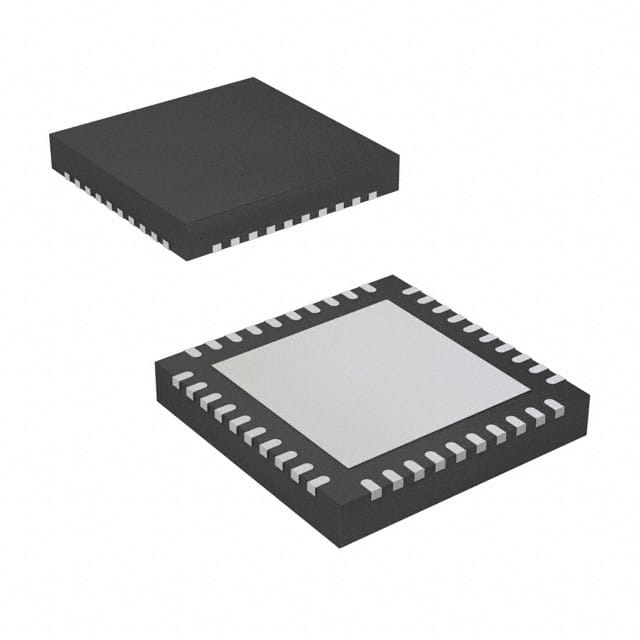

ZL40235LDF1
IC CLK BUFFER 3:5 1.6GHZ 40QFN
|
- | Tape & Reel (TR) | Active | Fanout Buffer (Distribution), Multiplexer | 1 | 3:5 | Yes/Yes | CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL | HCSL, LVCMOS, LVDS, LVPECL | 1.35V ~ 3.465V |
|
SY54020ARMG
IC CLK BUFFER 1:4 3.2GHZ 16MLF
|
Precision Edge® | Tube | Active | Fanout Buffer (Distribution) | 1 | 1:4 | Yes/Yes | CML, LVDS, LVPECL | CML | 2.375V ~ 2.625V |
|

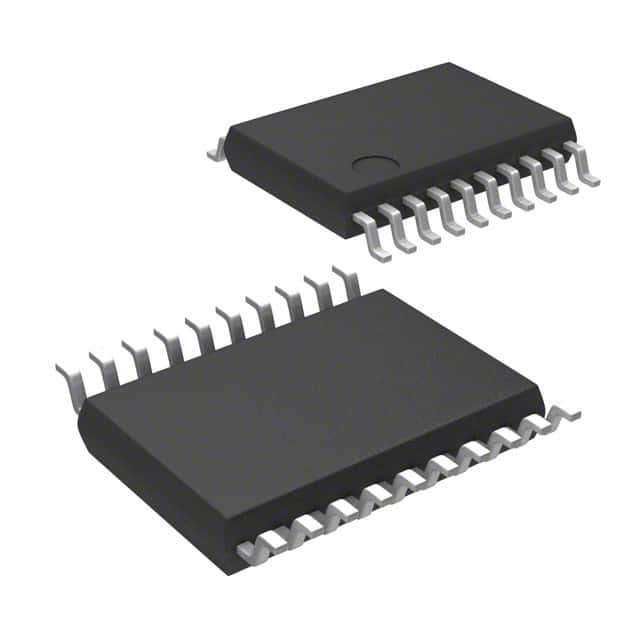

SY898535XLKY-TR
IC CLK BUFFER 2:4 235MHZ 20TSSOP
|
Precision Edge® | Tape & Reel (TR) | Active | Fanout Buffer (Distribution), Multiplexer | 1 | 2:4 | No/Yes | LVCMOS, LVTTL, Crystal | LVPECL | 3.135V ~ 3.465V |
|

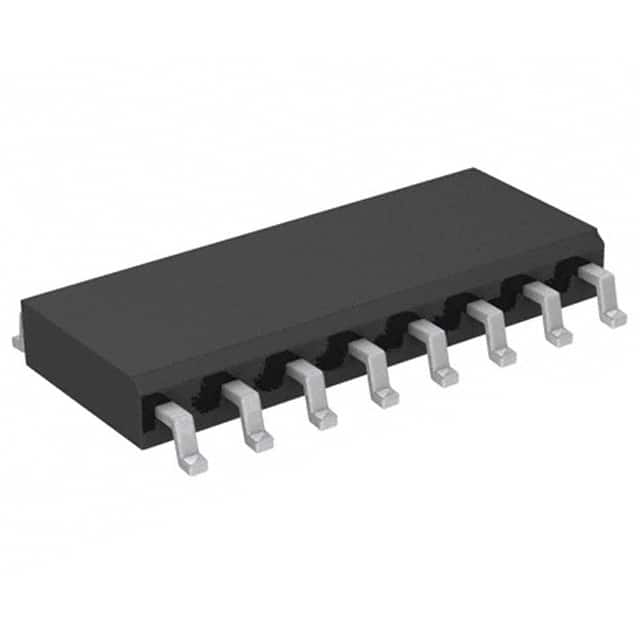

SY100EL15LZG-TR
IC CLK BUFFER 2:4 16SOIC
|
100EL, Precision Edge® | Tape & Reel (TR) | Active | Fanout Buffer (Distribution), Multiplexer | 1 | 2:4 | Yes/Yes | ECL, PECL | ECL, PECL | 3V ~ 3.8V |
|
SY100EL15ZC-TR
IC CLK BUFFER 2:4 16SOIC
|
100EL, Precision Edge® | Tape & Reel (TR) | Discontinued at | Fanout Buffer (Distribution), Multiplexer | 1 | 2:4 | Yes/Yes | ECL, PECL | ECL, PECL | 3V ~ 3.8V |
|
SY89645LK4G
IC CLK BUFFER 1:4 650MHZ 20TSSOP
|
Precision Edge® | Tube | Active | Fanout Buffer (Distribution) | 1 | 1:4 | No/Yes | LVCMOS, LVTTL | LVDS | 3.135V ~ 3.465V |
|

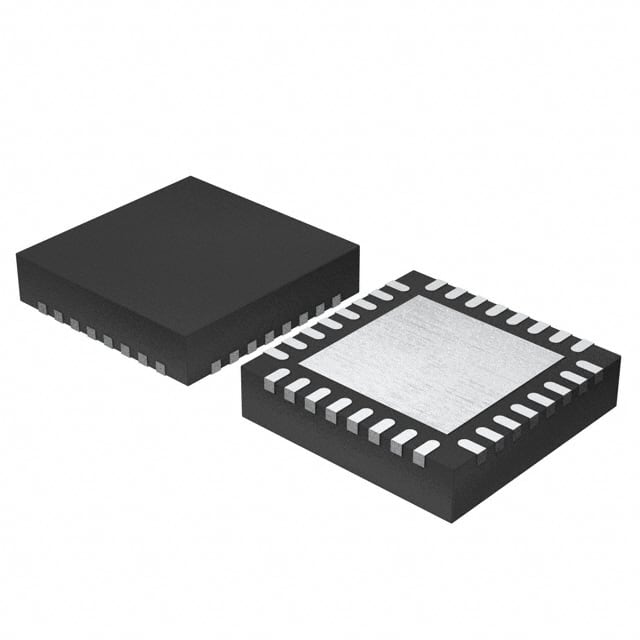

ZL40218LDG1
IC CLK BUFFER 1:8 750MHZ 32QFN
|
- | Tray | Active | Fanout Buffer (Distribution) | 1 | 1:8 | Yes/Yes | CML, HCSL, LVCMOS, LVDS, LVPECL | LVDS | 2.375V ~ 3.465V |
|
SY100E111LJY
IC CLK BUFFER 1:9 28PLCC
|
100E, Precision Edge® | Tube | Obsolete | Fanout Buffer (Distribution) | 1 | 1:9 | Yes/Yes | PECL | PECL | 3V ~ 5.5V |
|

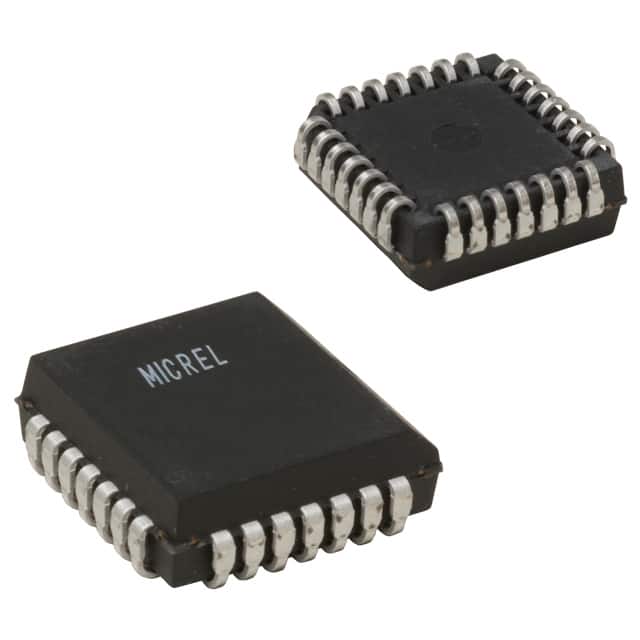

SY100E111LJG TR
IC CLK BUFFER 1:9 28PLCC
|
100E, Precision Edge® | Tape & Reel (TR) | Obsolete | Fanout Buffer (Distribution) | 1 | 1:9 | Yes/Yes | PECL | PECL | 3V ~ 5.5V |
