| Image | Mfr Part # | Series | Package | Product Status | Type | Number of Circuits | Ratio - Input/Output | Differential - Input/Output | Input | Output | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
8536CGI-33LF
IC CLK BUFFER 2:6 266MHZ 20TSSOP
|
- | Tube | Obsolete | Fanout Buffer (Distribution), Multiplexer | 1 | 2:6 | No/Yes | LVCMOS, LVTTL, Crystal | LVCMOS, LVPECL | 2.375V ~ 3.465V |
|

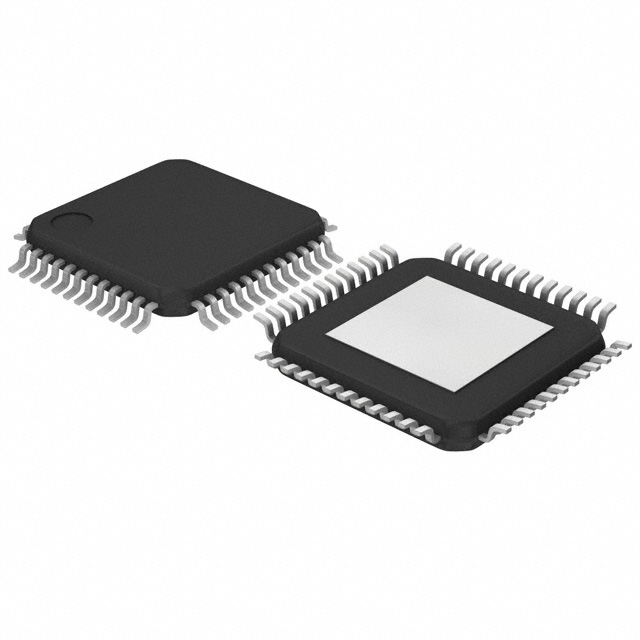

8530DY-01LFT
IC CLK BUF 1:16 500MHZ 48PTQFP
|
- | Tape & Reel (TR) | Obsolete | Fanout Buffer (Distribution) | 1 | 1:16 | Yes/Yes | HCSL, LVDS, LVHSTL, LVPECL, SSTL | LVPECL | 3.135V ~ 3.465V |
|

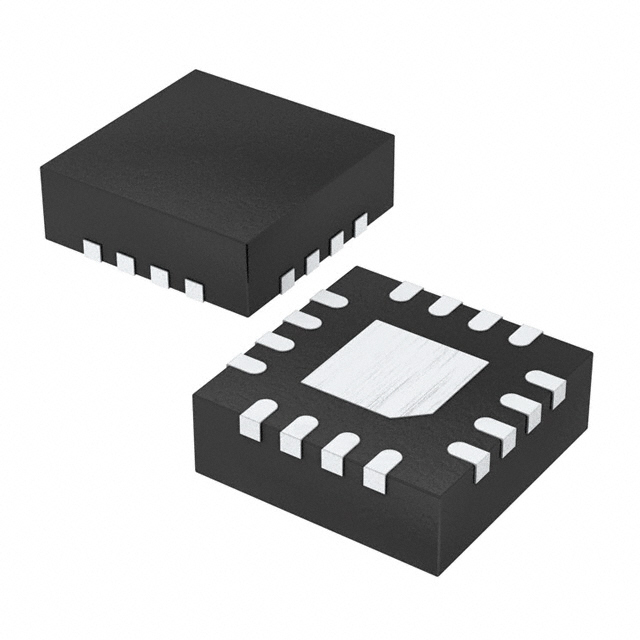

ICS85454AKILFT
IC CLK BUF 2:1/1:2 16VFQFN
|
- | Tape & Reel (TR) | Obsolete | Fanout Buffer (Distribution), Multiplexer | 2 | 2:1, 1:2 | Yes/Yes | CML, LVDS, LVPECL | LVDS | 2.375V ~ 2.625V |
|

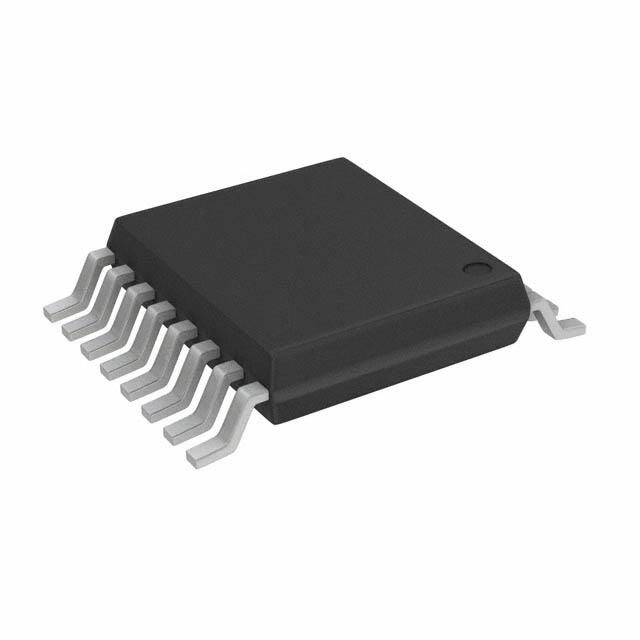

ICS556G-03I
IC CLK BUFFER 1:4 25MHZ 16TSSOP
|
- | Tube | Obsolete | Fanout Buffer (Distribution) | 1 | 1:4 | No/Yes | Crystal | LVDS | 2.375V ~ 2.625V |
|

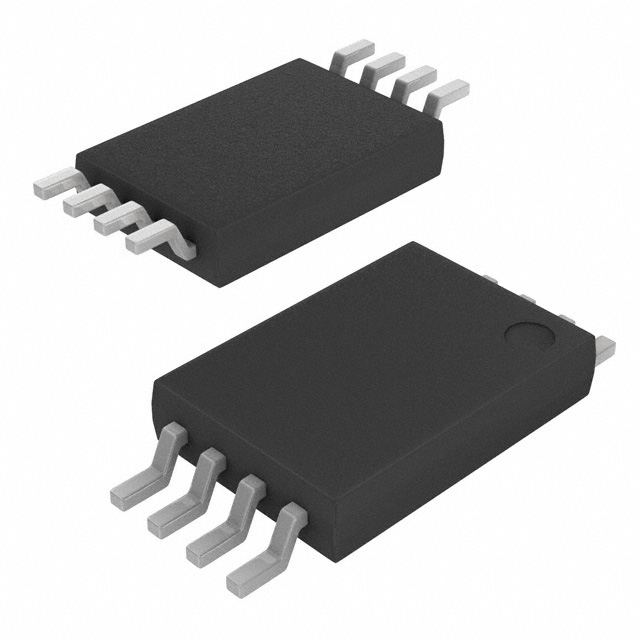

9112AG-27LF
IC CLK BUFFER 1:4 140MHZ 8TSSOP
|
- | Tube | Obsolete | Fanout Buffer (Distribution) | 1 | 1:4 | No/No | Clock | Clock | 3V ~ 3.6V |
|
8302AMI-01LFT
IC CLK BUFFER 1:2 250MHZ 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Fanout Buffer (Distribution) | 1 | 1:2 | No/Yes | LVCMOS, LVTTL | LVCMOS, LVTTL | 3.135V ~ 3.465V |
|

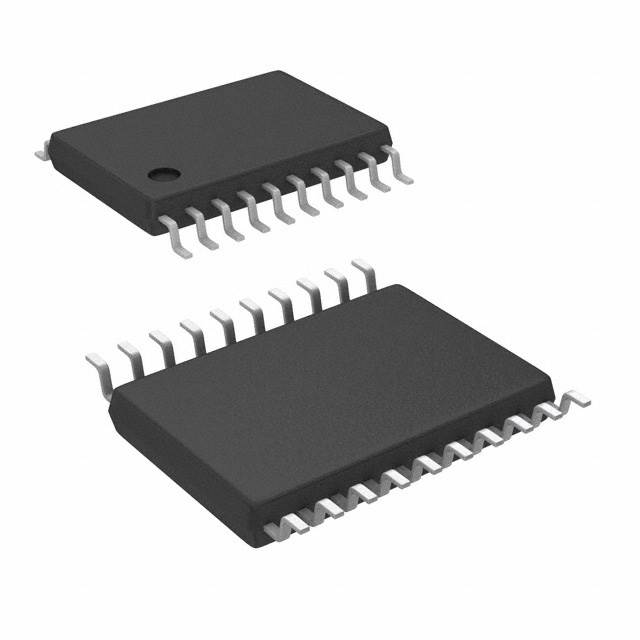

854S057AGILF
IC CLK MULTIPLX 4:1 2GHZ 20TSSOP
|
- | Tube | Obsolete | Multiplexer | 1 | 4:1 | Yes/Yes | CML, LVDS, LVPECL, SSTL | LVDS | 2.375V ~ 2.625V |
|
6P37015NDGI
IC CLK BUFFER TCXO 6UMLP
|
- | Tube | Active | - | - | - | - | - | - | - |
|
85311AMILF
IC CLK BUFFER 1:2 1GHZ 8SOIC
|
- | Tube | Obsolete | Fanout Buffer (Distribution) | 1 | 1:2 | Yes/Yes | HCSL, LVDS, LVHSTL, LVPECL, SSTL | ECL, LVPECL | 2.375V ~ 3.465V |
|
83905AGLFT
IC CLK BUFFER 1:6 100MHZ 16TSSOP
|
- | Tape & Reel (TR) | Obsolete | Fanout Buffer (Distribution) | 1 | 1:6 | No/No | Crystal | LVCMOS, LVTTL | 1.6V ~ 3.465V |
|
83904AG-02LFT
IC CLK BUFFER 3:4 200MHZ 16TSSOP
|
- | Tape & Reel (TR) | Obsolete | Fanout Buffer (Distribution), Multiplexer | 1 | 3:4 | No/No | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL | 2.375V ~ 3.465V |
|
8P34S2108NLGI8
IC FANOUT BUFFER 1:8 48-VFQFPN
|
- | Tape & Reel (TR) | Active | Fanout Buffer (Distribution) | 2 | 1:8 | Yes/Yes | LVCMOS, LVDS, LVPECL | LVDS | 1.71V ~ 1.89V |
