| Image | Mfr Part # | Series | Package | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

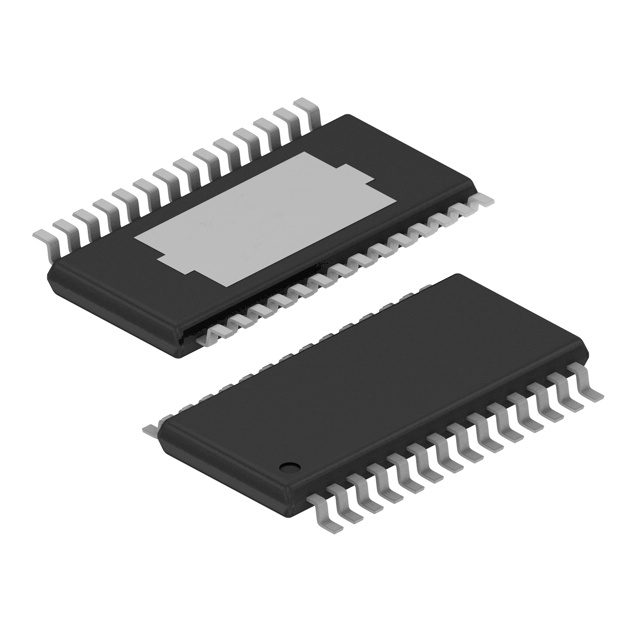

LM5045MHX/NOPB
IC OFFLINE SW FULL-BRG 28TSSOP
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Full-Bridge | 14V ~ 100V | - | Up to 2MHz |
|
UCC28600DR
IC OFFLINE SWITCH FLYBACK 8SOIC
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 8V ~ 21V | 99% | 40kHz ~ 130kHz |
|
|
UCC2808AQDR-1G4Q1
IC OFFLINE SW PUSH-PULL 8SOIC
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Isolated | No | - | Push-Pull | 8.3V ~ 15V | 49% | 1MHz |
|
|
UCC3807D-2
IC OFFLINE SWITCH MULT TOP 8SOIC
|
- | Tube | Active | Isolated | No | - | Boost, Buck, Flyback, Forward | 8.3V ~ 13.5V | 78% | 1MHz |
|
|
UCC2807D-2
IC OFFLINE SWITCH MULT TOP 8SOIC
|
- | Tube | Active | Isolated | No | - | Boost, Flyback, Forward | 8.3V ~ 13.5V | 78% | 1MHz |
|
UCC28780DR
IC OFFLINE SWITCH FLYBACK 16SOIC
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 12V ~ 34V | - | Up to 1MHz |
|
UCC28083P
IC OFFLINE SWITCH PUSH-PULL 8DIP
|
- | Tube | Obsolete | Isolated | No | - | Push-Pull | 8.3V ~ 15V | 49% | 50kHz ~ 1MHz |
|
|
UCC2894D
IC OFFLINE SW MULT TOP 16SOIC
|
- | Tube | Active | Isolated | No | - | Flyback, Forward | 8.5V ~ 16V | 70% | 1MHz |
|
|
UCC3804D
IC OFFLINE SWITCH MULT TOP 8SOIC
|
- | Tube | Active | - | No | - | Boost, Buck, Flyback, Forward | 8.3V ~ 12V | 49% | Up to 1MHz |
|
|
UCC3813DTR-4
IC OFFLINE SWITCH MULT TOP 8SOIC
|
- | Tape & Reel (TR) | Active | Either | No | - | Boost, Buck, Flyback, Forward | 8.3V ~ 12V | 49% | 1MHz |
|
UC3875DWPTR
IC OFFLINE SW FULL-BRDG 28SOIC
|
- | Tape & Reel (TR) | Active | Non-Isolated | - | - | Full-Bridge | 9.5V ~ 20V | 100% | 1MHz |
|
|
UCC3808ADTR-1
IC OFFLINE SWITCH MULT TOP 8SOIC
|
- | Tape & Reel (TR) | Active | Isolated | - | - | Boost, Buck, Half-Bridge, Push-Pull | 8.3V ~ 15V | 49% | 1MHz |
