| Image | Mfr Part # | Series | Package | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC3808APW-1
IC OFFLINE SW MULT TOP 8TSSOP
|
- | Tube | Discontinued at | Isolated | - | - | Boost, Buck, Half-Bridge, Push-Pull | 8.3V ~ 15V | 49% | 1MHz |
|
UC2875NG4
IC OFFLINE SW FULL-BRDG 20DIP
|
- | Bulk | Discontinued at | Non-Isolated | - | - | Full-Bridge | 9.5V ~ 20V | 100% | 1MHz |
|

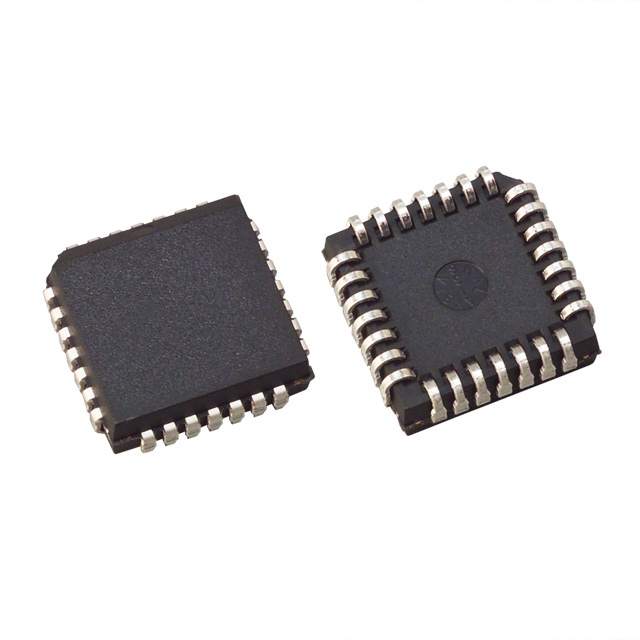

UC2875QP
IC OFFLINE SW FULL-BRDG 28PLCC
|
- | Tube | Obsolete | Non-Isolated | - | - | Full-Bridge | 9.5V ~ 20V | 100% | 1MHz |
|
UCC2888D
IC OFFLINE SWITCH FLYBACK 8SOIC
|
- | Tube | Obsolete | Non-Isolated | No | - | Flyback | 6V ~ 9.3V | 7.6% | - |
|
UCC3888NG4
IC OFFLINE SWITCH FLYBACK 8DIP
|
- | Tube | Obsolete | Non-Isolated | No | - | Flyback | 6V ~ 9.3V | 7.6% | - |
|
|
UCC28085PWRG4
IC OFFLINE SW PUSH-PULL 8TSSOP
|
- | Tape & Reel (TR) | Obsolete | Isolated | No | - | Push-Pull | 8.3V ~ 15V | 49% | 50kHz ~ 1MHz |
|
UCC2810DWTR
IC OFFLINE SW MULT TOP 16SOIC
|
- | Tape & Reel (TR) | Active | Isolated | No | - | Boost, Flyback, Forward | 8.3V ~ 11V | 49% | 1MHz |
|
UC3875N
IC OFFLINE SW FULL-BRDG 20DIP
|
- | Tube | Active | Non-Isolated | - | - | Full-Bridge | 9.5V ~ 20V | 100% | 1MHz |
|
UCC3810TD2
IC OFFLINE SWITCH DIE
|
- | Tube | Active | - | - | - | - | 8.3V ~ 11V | 50% | 1MHz |
|
UCC28631D
IC OFFLINE SWITCH FLYBACK 7SOIC
|
- | Bulk | Active | Isolated | No | - | Flyback | 8V ~ 20V | 70% | 200Hz ~ 120kHz |
|
|
UCC28083PW
IC OFFLINE SW PUSH-PULL 8TSSOP
|
- | Bulk | Active | Isolated | No | - | Push-Pull | 8.3V ~ 15V | 49% | 50kHz ~ 1MHz |
|
|
UCC3960D
IC OFFLINE SWITCH 8SOIC
|
- | Bulk | Active | Isolated | No | - | - | 8V ~ 19V | 72% | Up to 400kHz |
